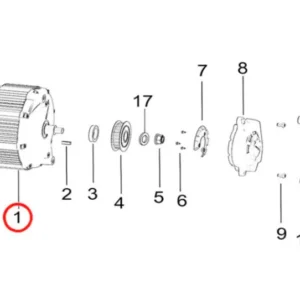

Motor Assembly for Surron Light Bee X (2025 and Earlier)

What is the Motor Assembly?

Surron Light Bee X Motor Assembly, For the Surron Light Bee X, the motor assembly is an integrated system, not just the magnetic stator and rotor. When you buy a “motor assembly,” it typically includes:

1. Stator: The stationary part attached to the swingarm, containing the copper windings. This is the “engine” that creates the electromagnetic fields. Surron Light Bee X Motor Assembly

2. Rotor (or Bell): The rotating outer shell that houses the permanent magnets and attaches to the wheel rim.

3. Hall Effect Sensors: These sensors tell the controller the position of the rotor, allowing for smooth and synchronized electronic commutation. Critical for the motor to run.

4. Temperature Sensor: A thermistor embedded in the stator to monitor motor temperature and prevent overheating damage.

5. Internal Wiring Harness: The wires that connect the sensors and phase wires from the stator to an external connector.

6. Bearings: High-quality bearings that allow the rotor to spin smoothly around the stator.

7. Wheel Rim: The motor is laced directly into the aluminum wheel rim.

8. Brake Disc Mounting Holes: Integrated into the rotor side plate. Surron Light Bee X Motor Assembly

9. Sprocket Mount (Final Drive): The mounting point for the rear sprocket, which is driven by the chain from the pedal crank (on models with pedals) or is the primary drive sprocket.

In essence, buying the “motor assembly” means you’re getting the entire rear wheel hub motor as a single, pre-assembled unit, ready to be bolted onto the swingarm, connected electrically, and have the brake disc and sprocket installed.

---

Key Specifications for the Surron Light Bee X (Pre-2025)

• Motor Type: Brushless DC (BLDC) Hub Motor, also referred to as a Mid-Drive Hub in some contexts (though it’s distinct from a central mid-drive motor).

• Power Rating (Nominal/Peak): Approximately 5,000W Peak. The nominal (continuous) power is lower, around 2,000W-3,000W, but it can handle short bursts of much higher power.

• Voltage: 60V nominal. This matches the standard Surron battery. Surron Light Bee X Motor Assembly

• Construction: The stator is typically made from laminated steel with copper windings, and the rotor is a robust aluminum shell with powerful neodymium magnets.

---

Why Would You Need to Replace the Motor Assembly?

There are several reasons why an owner would seek a replacement motor:

1. Physical Damage: The most common reason. A crash can bend the rotor or damage the axle mounts, making the wheel untrue or unable to spin freely.

2. Burnout (“Letting the Magic Smoke Out”):

   • Overheating: Sustained high load, like long hill climbs or riding in deep sand, can overheat the motor, melting the enamel on the windings and shorting them.

   • Controller Failure: A faulty controller can send uncontrolled current (a “phase wire short”) to the motor, instantly destroying the windings or hall sensors.

3. Bearing Failure: Worn-out bearings cause play, grinding noises, and inefficient power transfer. While bearings can be replaced, it’s a specialized job, and sometimes it’s easier or more cost-effective to swap the entire assembly.

4. Water Ingress: Although the motor is supposed to be sealed, submersion or pressure washing can force water inside, leading to rust and corrosion of the internals, eventually causing failure.

5. Performance Upgrade: Some owners might upgrade to a more powerful aftermarket motor assembly, though this is less common than upgrading the controller and battery. Surron Light Bee X Motor Assembly

---

What to Look for When Buying a Replacement

1. OEM vs. Aftermarket:

   • OEM (Original Equipment Manufacturer): Guaranteed to fit and perform exactly like the original. Often more expensive.

   • Aftermarket: Can be more affordable. Quality can vary, so purchase from a reputable seller. Some aftermarket versions might even have minor improvements in cooling or winding quality.

2. Compatibility: CRITICAL. Ensure the product listing explicitly states compatibility with the Surron Light Bee X and the model years “2025 and Earlier.” While the motor design has been consistent, there can be minor changes in connectors or sensor types over the years. Surron Light Bee X Motor Assembly

3. Included Components: Verify what’s in the box. Does it include the temperature sensor and internal wiring? The best assemblies include everything.

4. Seller Reputation: Buy from a well-known Surron parts specialist or a distributor with good customer reviews to ensure you get a quality product and support if there’s an issue.

---

Installation Overview (Simplified)

Replacing the motor assembly is a moderately complex job that requires mechanical skill and the right tools.

Steps Involve:

1. Disconnecting the main battery.

2. Removing the rear wheel (undoing the axle nut).

3. Disconnecting the motor’s electrical plug (typically a 5-pin or 6-pin connector for hall sensors and temperature) and the 3 thick phase wires. Surron Light Bee X Motor Assembly

4. Removing the chain from the sprocket and the brake caliper from the disc.

5. Swapping the brake disc and sprocket from the old motor to the new one.

6. Installing the new motor assembly in reverse order.

7. Checking chain alignment and brake function.

Note: After installation, if the motor runs poorly (stutters, has no power, or runs backwards), it may indicate that the phase wire and hall sensor sequence is different from the old motor. This requires troubleshooting the correct combination or consulting the supplier. Many modern controllers have an “auto-learn” function to handle this. Surron Light Bee X Motor Assembly

Conclusion

The Motor Assembly for Surron Light Bee X (2025 and Earlier) is the complete, pre-built rear hub motor unit. It’s a robust component, but it can fail due to crashes, overheating, or water damage. When replacing it, prioritizing compatibility and quality from a reputable source is key to getting your Light Bee X back to its powerful and reliable self. Surron Light Bee X Motor Assembly
